Description

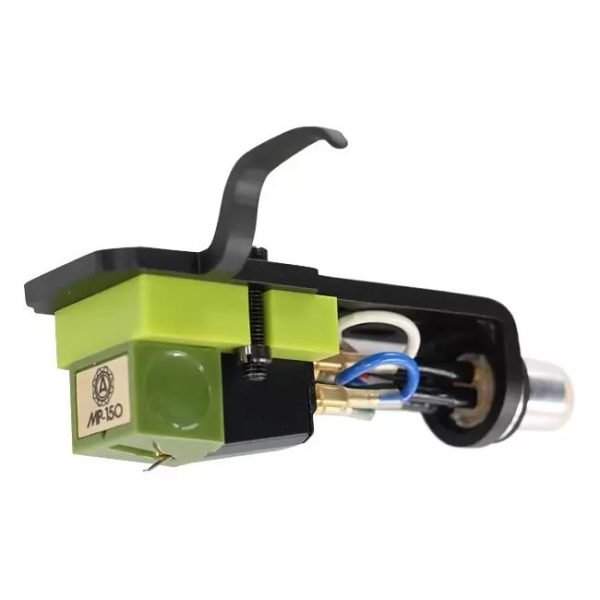

Nagaoka – MP-150 – Cartridge preinstalled on headshell for easy plug and play.
Complete instructions and mounting hardware are included.
An ambitious work using a cantilever made of tapered aluminum alloy and an elliptical diamond needle.
Characterized by a firm sound.
■ Output voltage: 4.5mV (5cm / SEC)
■ Frequency characteristics: 20Hz ~ 20,000Hz
■ Channel separation: 24dB (1KHz)
■ Channel balance: 1.5 dB or less
■ Load resistance: 47KΩ
■ Load capacity: 100pF
■ Cantilever: Hardened tapered aluminum alloy
■ Needle tip: 0.4 × 0.7mil Ellipse / Diamond
■ Appropriate stylus pressure: 1.5 ~ 2.0g
■ Cartridge weight: 6.5g
■ With head shell Weight: 16.5g
